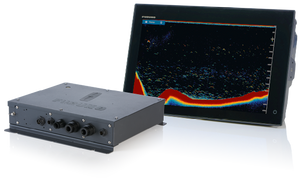

DI-FFAMP "Deep Impact" TruEcho CHIRP Fish Finder Amplifier - 2kW or 3kW

Shipping calculated at checkout.

CHIRP Power Amplifier for TZTouch3

Go deeper with more power than you thought was possible

TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder


Deep Impact DI-FFAMP boosts your power to a 2/3 kW CHIRP Fish Finder. High-powered TruEcho CHIRP™ ensures that your echoes come back strong & clear at every depth range, displaying fish targets and bottom structure with amazing clarity.

Heaving compensation

Heaving correction is available in combination with a Satellite Compass such as SCX-20 or SC-33.

When switched on Heaving compensation automatically removes vessel motion from the Fish Finder screen in rough seas. This is usually seen as a "Saw Tooth" distortion of the bottom image, due to vertical vessel motion even though the bottom is actually flat. It greatly enhances bottom fishing and bottom trend analysis without sacrificing critical details as can occur when using a traditional Bottom Lock Echo Sounder Mode. Only a compatible satellite compass can provide vertical vessel motion information to remove this distortion.



  • Display Modes: Single (High or Low frequency), Dual (Both High and Low frequencies), Bottom-lock, Bottom-Zoom, A-Scope
  • Frequency: 26.6 to 242 kHz
  • Broadband (CHIRP): Available 2 channels
  • Output Power: 2 kW/3 kW
  • Power Supply: 12-24 VDC

Q. Is this power amplifier compatible with TZtouch2?

A. No - The DI-FFAMP is designed to connect directly to the in-built TruEcho CHIRP in the TZTouch3 display to amplify the power from 1kW to up to 3kW. To connect high power transducers for use with TZtouch2 use the DFF3 network sounder module.
