FCV800

$3,473.91

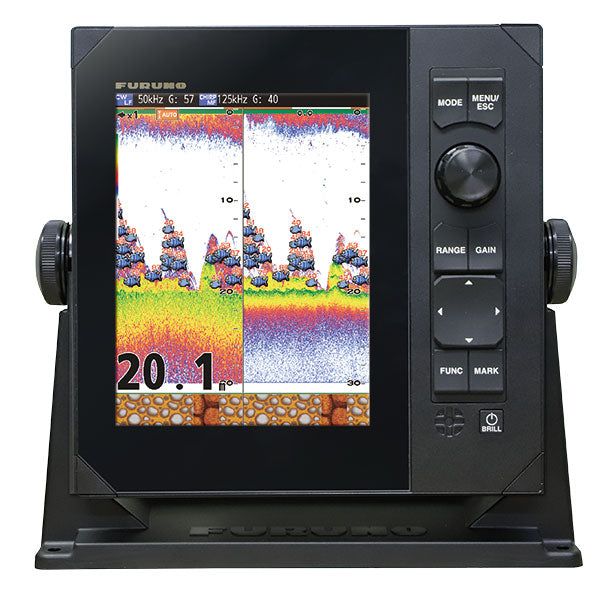

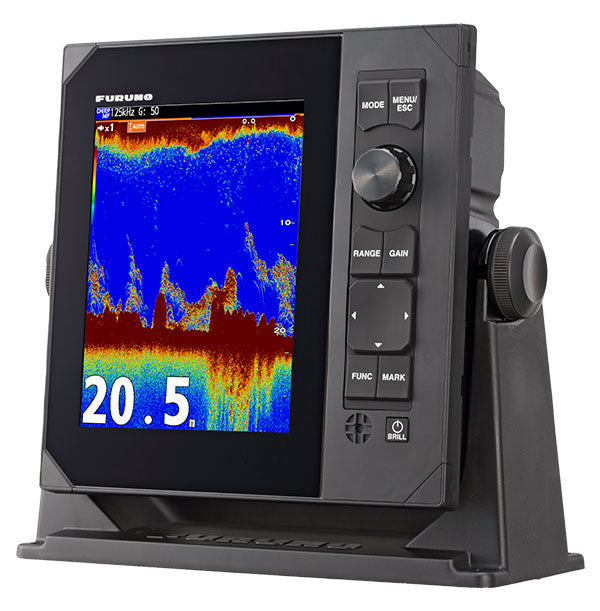

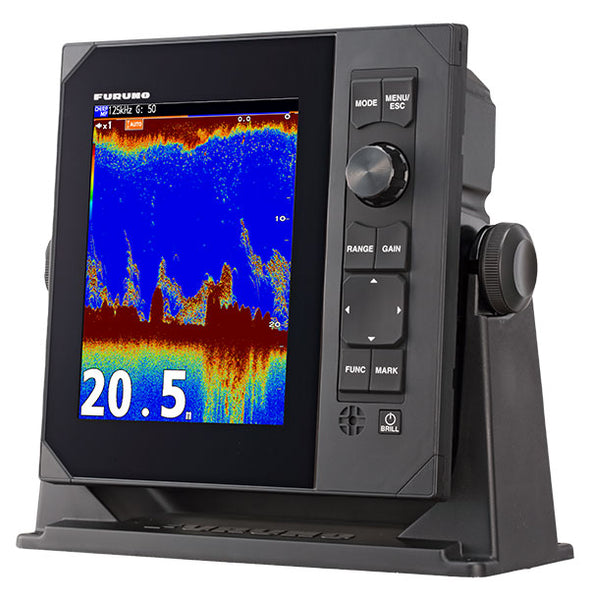

8.4" Colour Fish Finder with TruEcho CHIRP & Rezboost Sounder

Quantity

Shipping calculated at checkout.

Features
Specifications
Documents
FAQs

Versatile Fish Finder for any vessel

Furuno’s new stand-alone Fish Finders introduce all-new features that fishermen will love, built on the foundation of award-winning Furuno features that fishermen rely on. The 8.4” FCV800 can drive either a CHIRP or dual-frequency CW (Continuous Wave) transducer, allowing fishermen to configure the Fish Finder to suit their needs. Furuno’s TruEcho CHIRP™ delivers greater detail and target separation for baitfish, game fish, and structure by transmitting across a spectrum of frequencies.

Better still, the FCV800 features dual transducer ports, allowing for the simultaneous use of CHIRP and CW channels and unlocking amazing features for the CHIRP environment, such as Bottom Discrimination and Furuno’s Accu-Fish fish size assessment tool. With the FCV800’s ability to drive both TruEcho CHIRP™ and CW options simultaneously, these sought-after CW-only features can be combined with TruEcho CHIRP’s frequency-modulated signal to deliver those Furuno features while providing better resolution for targets on the screen.

COMBINE CW & TruEcho CHIRP™ FOR ADDED CAPABILITIES

By combining CHIRP and traditional CW transducers*, you’ll see crisp CHIRP echoes on the screen while the ACCU-FISH™ and Bottom Discrimination functions from your CW transducer work in the background, overlaying important information on your CHIRP returns. You will be able to see fish targets, fish size assessment, fish depth, and bottom composition.** Up to three frequencies can be saved as preset selections.

*FCV-800 Single Frequency CHIRP only
**MF or HF CHIRP

COLOR EXPANSION

With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.

Feature-packed Fish Finder

TruEcho CHIRP™- Operates across a wide range of frequencies using a broadband transducer for better signal clarity & target definition RezBoost™ Signal Processing - Improved clarity & resolution for conventional CW transducers
ACCU-FISH™ - A unique fish size and depth assessment function
Bottom Discrimination - Provides recognition of bottom composition with 4 types of graphic displays (Rock/Sand/Gravel/Mud)
NEW! Bottom Hardness Output - for external plotters such as TZ Professional and Olex (FCV800 only)
NEW! Color Expansion - Expands echo colors to easily identify fish from seabed
White Line Feature - Finds fish lying near the bottom by displaying the top edge of the bottom in white to clearly show bottom structure
Configurable Alarm Function - Depth, Fish echo, Speed, Arrival, and more!
TLL (Target Lat/Lon) Output - Interface with your Furuno Chart Plotter to mark fishing grounds with various information such as Depth, Water Temp, Fish Size, and Bottom Type (FCV800 only, requires a Chart Plotter)
Fast Transmission Rate- 3,000 PRR (Pulse Repetition Rate) per minute
NEW! Colors - Sunlight and Yellow color palettes
NEW! Wireless Connectivity – Wireless second display for simple installation

NEW WIRELESS CONNECTIVITY

A second display can be installed to show the echoes and nav data from the FCV-600 and FCV-800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.

The FCV600 and FCV800 are compatible with the TZ iBoat App from TIMEZERO, offering anglers control of their Fish Finder from anywhere on the boat, welcome news for anglers who want to utilize their Fish Finder while managing the reels, or from anywhere on the boat. A one-time purchase of the dedicated Fish Finder module from within the TZ iBoat app puts control of your FCV600 or FCV800 right in your pocket!

Display

Display Unit: 8.4" TFT color LCD
Pixel Number: SVGA 800 x 600
Display Modes: Single Frequency/ Dual-Frequency/ Zoom/ Nav Data/ A-Scope/ Marker Zoom/ Bottom-Lock/ Bottom Discrimination/ Color Expand/ ACCU-FISH™/ RezBoost™

Fish Finder
