Integrated Heading Sensor with Solid State Gyroscope

Shipping calculated at checkout.

Fluxgate magnetic sensor with enhanced stability by a solid state gyroscope

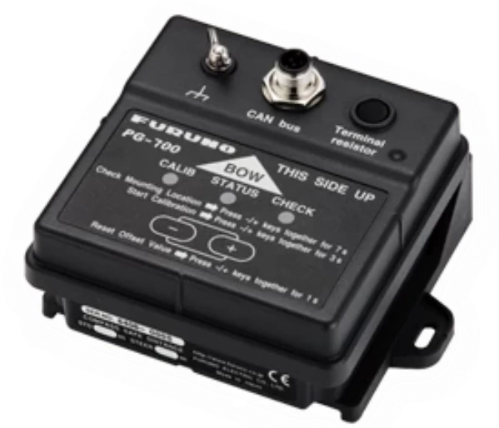

The PG700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG700 virtually maintenance-free and easy to install. The PG700 heading sensor detects terrestrial magnetism and produces compass data that can be utilised in CAN bus network


  • A fluxgate magnetic sensor in conjunction with a solid-state angular rate heading.
  • Offers a high level of accuracy and stability : 0.5°RMS
  • Compact unit with L-bracket allows flexible installation
  • Automatic magnetic field distortion correction
  • Provides precision heading data to FURUNO CAN bus devices
  • Heading Accuracy: ±1.0° (horizontal)
  • Heading Resolution: 0.1°
  • Follow-up: 45°/s rate-of turn
  • Interface: CAN bus x 1
  • Temperature: -15°C to 55°C
  • Waterproofing: IP55
  • Power Supply: 9-16 VDC (LEN=3)
  • Weight: Floor Mounting (0.31 kg) / Bulkhead Mounting (0.35 kg)




Operators Manual
