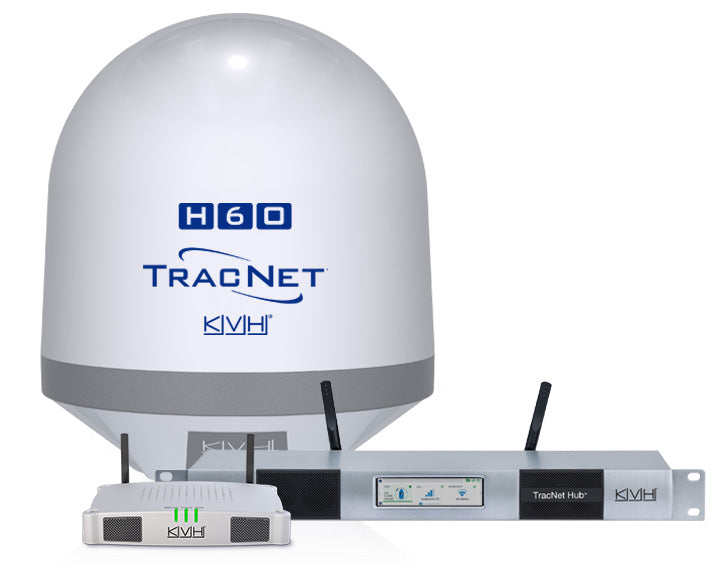

TracNet H60

Compact hybrid connectivity solution for global high-speed communications

The TracNet™ H60 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking TracNet H60 is 42% lighter than leading competitors and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.

 Rugged, commercial-grade system, diameter 60 cm (23.6 in), weight 24.3 kg (53.6 lbs)

• Satellite, cellular, and Wi-Fi capabilities in one integrated design
• Automatically switches to the best connectivity option based on cost, data quality, and more
• Data speeds as fast as 10/3 Mbps (down/up)
• For boats 60+ feet (18+ meters)

Highlight

• Global satellite, cellular, and shore-based Wi-Fi in one integrated design
• Automatic hybrid switching based on service cost, signal strength and data quality
• Optional manual network switching
• Supports use of user-supplied SIM cards
• Dual channels – high speed and unlimited use plus two VoIP lines
• High-performance tracking using digital IMUs and a commercial-grade rotary joint
• Precision 3-axis stabilized pedestal design plus stabilized skew
• Single cable install
• Mobile-responsive KVH Manager for analytics and data control
• Exclusive IoT proactive monitoring that reports daily on 150+ performance and health parameters

For TracNet H90 Specifications please see the brochure under the documents tab.

Brochure

TracNet H60
