GP170

GP170

Regular price $5,213.04 $0.00

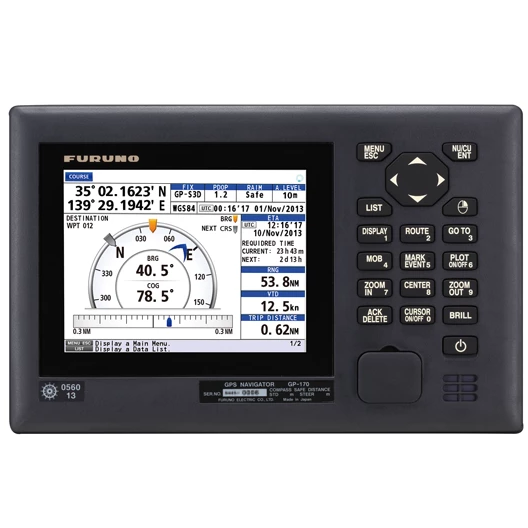

Furuno GP170 6' LCD GPS Track Plotter c/w GPA021S Antenna

Shipping calculated at checkout.

Highly stable position fixing for seagoing vessels

Furuno’s GP170 is a highly stable and reliable position fixing system for ocean going ships, large yachts, ferries and commercial vessels.

Ideal position sensor for Radar, AIS, ECDIS, autopilot, echo sounder and other navigation and communications equipment.

Full compliance with IMO MSC. 112 (73) and IEC 61108-1: performance and testing standards for GPS receiver

Enhanced stability and precision in position fixing thanks to a highly sensitive antenna unit

10 Hz position update rate (position updated every 0.1 second) making steady own ship position tracking possible

USB port available on the front panel- Routing data, menu setting, user setting can be exported/imported through USB jump drives

Dual configuration for back-up purpose to ensure system availability - Information about waypoints, route and other data set by the operators on the one unit can be shared with the other unit for functional back-up

LAN interface available for efficient network integration into a bridge system, fully complying with IEC 61162-450, the new mandatory Ethernet communication standard.

BAM-Ready

The GP170 is BAM (Bridge Alert Management) ready and boasts a variety of display modes, including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.

  • Data Type: NMEA0183 and IEC61162-450
  • Display Size: 5.7 inches
  • Display Type: Colour LCD
  • Power Usage:12-24 VDC
  • Receiver Type GPS
