Black Box Full-Circle Scanning Sonar with Motion Sensor, 85kHz

Find A Dealer
Shipping calculated at checkout.

Instantly scan in all directions to reveal the underwater world!
The CSH10 360-degree Scanning Sonar instantly captures the underwater conditions in all directions, making it easy to understand the situation beneath the vessel.

The 85 kHz frequency detection delivers excellent performance to distinguish between shoals of fish and bottom-trawling fish, and the sharp beam width is effective for detecting schools of fish near the surface.

Because a Full-Circle Scanning Sonar emits ultrasonic waves in all directions 360 degrees around the ship, instantly detecting and displaying images, its detection speed is much faster than that of a Searchlight Sonar. the CSH10 can instantly detect the entire periphery, capturing the same school of fish multiple times, making it suitable for detecting fast-moving bonito and tuna.



Beam Stabilization for accurate detection
In rough weather, the vessel’s motion causes distortion in the display of fish echoes and target images. The CSH10 comes equipped with a motion sensor as standard supply, and Furuno's unique beam stabilization technology automatically adjusts the beam to the specified angle, correcting for ship’s motion in heavy seas. Transmission and reception beams can be stabilized independently, allowing stable detection of shallows and schools of fish even in rough seas.

Furuno's unique signal processing technology provides clearer images than ever. Not only does the beam stabilization function provide stable capture, but the excellent resolution of the image helps you identify schools of fish as well as underwater topography and structure.


Target Lock and Fish Quantity Mark
Target Lock provides two modes: Position tracking and School of Fish tracking. When using position tracking mode, you can track the target reef or other areas in a fixed position. Or, automatically track schools of fish, calculating and displaying the distance and depth from your ship, as well as the speed and direction of the school. When you add a Fish Quantity Mark, the fish school information will be displayed in the data display, showing the length, width, area, and fish quantity index value of the school of fish. The fish quantity index value is calculated from the area of the fish school echo displayed within the fish quantity mark.

Additionally, a tilt indicator has been added to the top left of the display screen. Tilt angle, linear/horizontal/vertical distance to cursor, beam detection range, and beam width top/bottom depth are displayed, allowing intuitive echo position recognition.

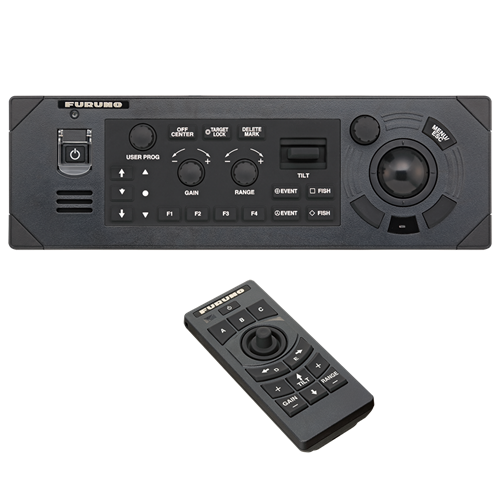

Redesigned Control Unit and Remote Control options
The new control unit is more compact than previous models, making it easy to install. Our popular function keys, tilt lever, sensitivity/range knob, and a large trackball are all available, and Furuno's phenomenal RotoKey™ is now included. With the new optional wired or wireless remote control units, you can easily set your range, tilt angle, and sensitivity from a distance. The wireless remote control can be used with up to four units via Bluetooth® connection.

Now compatible with the TZTXL range with Software version 25.11.
Allowing full control and sonar overlay, displaying reel-time sonar echos directly onto your chart.



Display Size: Black Box
Display Type: Black Box
Frequency: 85 kHz
Power Usage: 24 VDC
Range: 2000 m

Hull Options:
600mm travel CSH1041
400mm travel CHS1040

Shaft Size Options:
1.2M    CSH10SHAFT/1.2M
2.5M    CSH10SHAFT/2.5M
3.5M    CSH10SHAFT/3.5M

Tube Size Options:
190mm ID x 1.0m L.O.A.
190mm ID x 1.8m L.O.A.
190mm ID x 3.5m L.O.A.

Please discuss your requirements with ENL
