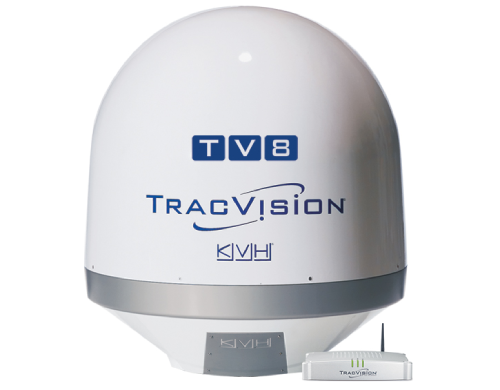

TV8

Excellent reception for extended cruising offshore

With the powerful and sleek TracVision TV8, you can count on high-performance tracking and excellent reception (including HDTV programming) no matter where your favourite cruising grounds are found. The 81 cm (32 inch) diameter antenna features an expanded coverage footprint so you can enjoy hundreds of channels of uninterrupted, crystal-clear digital entertainment with top-quality sound.

Highlights:

• Supports DIRECTV U.S. & Pan Americana, DISH Network U.S. & Mexico, Bell TV, SKY Mexico, and circular and linear Ku-band services worldwide
• HDTV-compatible (Ku-band services only)
• Single coaxial cable for power, data and video for easy installation and retrofits
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advance algorithms for crystal-clear television picture in heavy seas
• Built-in worldwide satellite library
• All system configurations support multiple receiver installations
• DVB-S2 compatible
• Tri-Americas LNB option for seamless TV reception throughout the Americas

• IP Auto-Switch option for multiple receiver installations delivers simple auto-switching on DiSEqC-compatible services
• Global support from KVHs Certified Support Network (CSN)
• World-class warranty coverage and support

• Satellite Coverage Regions:  - Refer to Link on our Documents Page
• Antenna Dish Diameter: 81.3 cm (32")
• Antenna Unit Diameter x Height x Antenna Unit Weight: 88.9 cm x 99.9 cm (35" x 39.3") 40 kg (88.2 lbs)
• Minimum EIRP (Ku-band):  43 dBW
• LNB Types Available (polarization/output):  Linear Universal Quad DIRECTV L.A. Circular Circular Tri-Americas Circular SKY Mexico Stacked
• Tracking Technology: High Performance
• User Interface: TV-Hub web interface
• System Power: 10-30 VDC 60 watts nominal
