NEW TZtouch3 12" Multi Function Display Unit with built in 1kW Dual Freq Chirp Sounder
New NavNet TZtouch3 is now offered with four display options - 9", 12” Hybrid, 16” and 19”touch.

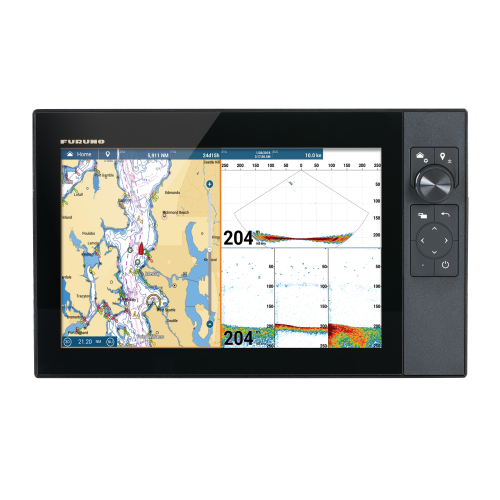

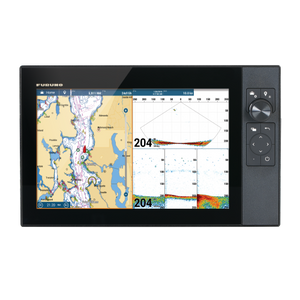

The 12" Hybrid Control TZT12F is an IPS multi touch display with an integrated control panel, including Furuno’s intuitive RotoKey and dedicated physical buttons to complement NavNet TZtouch3's multi-touch controls.
Rest your hand on the RotoKey as you crash through the waves, and navigate easily to your charted destination !
- More powerful quad-core processor for lightning-fast response
- Built-in Dual Channel 1 kW TruEcho CHIRP™ & CW Fish Finder, low, medium & high Frequencies.
- New Pin code access on start up
- Interface with an extensive range of sensors including new Doppler Radar models, DFF3D Multi beam, Autopilot and new Compass SCX20
- 4 Way Screen Split allows for further customisation
Never lose waypoints, routes or settings again with TZ Cloud
NavNet TZtouch3 keeps data secure and easy-to-access on multiple platforms with the TZ Cloud system. TZ Cloud service allows you to back up and store your waypoints, routes, and event marks to the TimeZero cloud server, as well as synchronise and edit them on your MFDs, TimeZero PC software, and the TZ iBoat app for iPad. Use the new TZ First Mate app to drop an event mark with each big catch and include the species, length & weight, and even take a picture with your phone, then access the information anywhere.
FIND MORE FISH WITH TruEcho CHIRP™
The internal 1 kW TruEcho CHIRP™ Fish Finder inside NavNet TZtouch3 is designed to operate across a wide range of frequencies utilising a broadband transducer and delivers significant advantages to signal clarity & target definition. Due to the constant sweeping of frequencies, it is capable of gathering more & higher quality data than traditional Fish Finders.
Built-in Dual Channel 1kW TruEcho CHIRP & CW Fish Finder
GO DEEPER WITH MORE POWER THAN YOU THOUGHT WAS POSSIBLE
NavNet TZtouch3 incorporates a powerful internal 1 kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need more power. So, introducing Deep Impact (DI-FFAMP), a high-powered 2/3 kW amplifier.
Deep Impact boosts your power to a 2/3 kW CHIRP Fish Finder. High-powered TruEcho CHIRP™ ensures that your echoes come back strong & clear at every depth range, displaying fish targets and bottom structure with amazing clarity.
Screenshot using Optional DEEP IMPACT (DI-FFAMP) amplifier.
Heaving correction is available in combination with a Satellite Compass such as SCX-20 or SC-33.
When switched on Heaving compensation automatically removes vessel motion from the Fish Finder screen in rough seas. This is usually seen as a "Saw Tooth" distortion of the bottom image, due to vertical vessel motion even though the bottom is actually flat. It greatly enhances bottom fishing and bottom trend analysis without sacrificing critical details as can occur when using a traditional Bottom Lock Echo Sounder Mode. Only a compatible satellite compass can provide vertical vessel motion information to remove this distortion.
Bottom DISCRIMINATION display*
Bottom Discrimination provides detailed information about knowing the make-up of the seabed & categorising it into four different categories: Rocks, Gravel, Sand, and Mud. The make-up of the seabed can be tremendously helpful information when looking for fishing grounds, as well as for finding suitable anchorage.
**Note - When using a CHIRP transducer you will not be able to access the Bottom Discrimination function**
ACCU-FISH™ fish size analyzer*
The ACCU-FISH™ algorithm analyzes echo returns in order to compute individual fish size. The algorithm is capable of calculating fish size ranging from 10 cm up to 199 cm long. Fish depth can also be displayed.
**Note - When using a CHIRP transducer you will not be able to access the ACCU-FISH function**
More power to see 120˚PORT-STARBOARD and in 3D
Connect an optional DFF3D Multi Beam sonar for the ultimate fishing machine!
The DFF-3D Multi Beam Sonar operates at 165 kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40˚ ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!
Game changing New Feature
PBG (Personal Bathymetric Generator) Shaded Relief Maps Made With DFF3D Multi-Beam Sonar. Create your own High-Resolution PBG Shaded Relief Charts anywhere and everywhere you go using a TZTouch3 MFD (must have v 2.01 software) and the DFF3D with compact specialised transducers (which have built in motion sensors & temperature).
Maxsea Timezero 3DHR Bathy Data is now available....
The 3D High Resolution Bathymetric file is now available & compatible with TZTouch3 software V2 and TZ- Pro V4 with PBG module. This is an additional add on to your current New Zealand charting (Needs to be used in conjunction with C-Map or Navionics charts, as this data is not navigational).
Administration Bay - New Zealand with a standard C-Map chart
Administration Bay - New Zealand with the 3DHR Bathy Data with a C-Map chart
Furuno has releases a huge array of new sensors to complement the Navnet system for 2020 including the industry Class leading radars.
Furuno’s new solid state power-packed 100 and 200-Watt NXT Solid-State Doppler Radars deliver the highest-powered solid state radars available, combined with industry leading SNR (signal to noise ratio) circuitry, no competition gets close to Furuno’s radar performance. Functions such as Fast Target Tracking of up to 100 ARPA targets, Bird Mode, Rain Mode, and Target Analyzer, where dangerous Radar targets are shown in red, alert navigators to the current situation at-a-glance. Furuno's selection of Dome and Open Array Radars in both magnetron and Solid-State configurations ensures that there is a Radar to meet the needs of every vessel.
Additionally this is backed up by a Pair of new Satellite compasses SCX-20 and SCX21 which use 4 GLONASS, GPS antennas for accurate 10Hz position, Heading and stabilization, including heave compensation for Furuno sounders and sonars.
Join our mailing list and keep up to date with our TZtouch 3 launch by emailing
- Display Type: (IPS) LCD
- Screen Size: 12.1"
- Screen resolution: WXGA 1280 x 800
- Memory Capacity: 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
- Data Type: NMEA2000 (1 port), NMEA0183 (1 Serial output port
- LAN: 2 Ports (100 BASE-TX)
- USB: 1 Port (USB2.0) for touch monitor and control unit
- Input: 2 Ports (NTSC/PAL) Output: 1 Port (HDMI 720p)
- Power: 12-24 VDC
See brochure for full list of specifications
